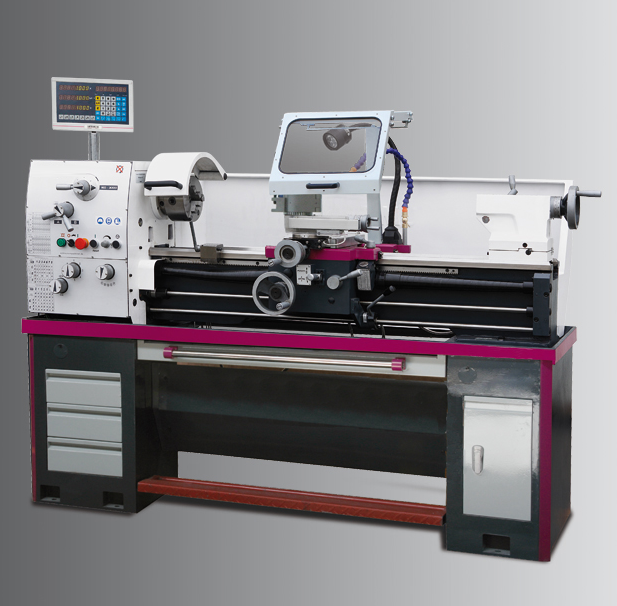

Type |
ZN-3610IO |
|
Item No |
P340 3130 |
|
Machine datas |
|
|
Electrical connection |
400 V / 3 Ph ~50 Hz |
|
Main motor power |
4 kW |
|
Coolant equipment |
40 W |
|
Working areas |
|
|
Centre height |
180 mm |
|
Centre width |
1'000 mm |
|
Turning Ø over lathe bed |
356 mm |
|
Turning Ø over cross slide |
220 mm |
|
Turning Ø in the bed bridge |
516 mm |
|
Length of bed bridge |
240 mm |
|
Bed width |
205 mm |
|
Speeds |
|
|
Spindle speed |
30 - 550 min-1 / 160 - 3000 min-1* |
|
Number of steps |
2 steps, electrically adjustable speed |
|
Headstock |
|
|
Spindle taper |
MT 5 |
|
Spindle seat |
Camlock DIN ISO 702-2 Nr. 4 |
|
Spindle drilling, rod passage |
Ø 38 mm |
|
Slide |
|
|
Travel top slide |
95 mm |
|
Travel cross slide |
180 mm |
|
Longitudinal feed in the range of |
0.043 - 0.653 mm/rev;42 feeds |
|
Transverse feed in the range of |
0.015 - 0.220 mm/rev;42 feeds |
|
Pitch - Metric in the range of |
0.45 - 7.5 mm/rev; 37 thread pitches |
|
Pitch - Inch in the range of |
112 - 4 threads/1“; 28 thread pitches |
|
Quadruple tool holder seat height |
Max. 16 mm |
|
Tailstock |
|
|
Tailstock seat |
MT 3 |
|
Tailstock - sleeve travel |
120 mm |
|
Dimensions |
|
|
Length x width x height |
1'920 x 800 x 1'250 (DPA 1.490) mm |
|
Net weight |
850 kg |
