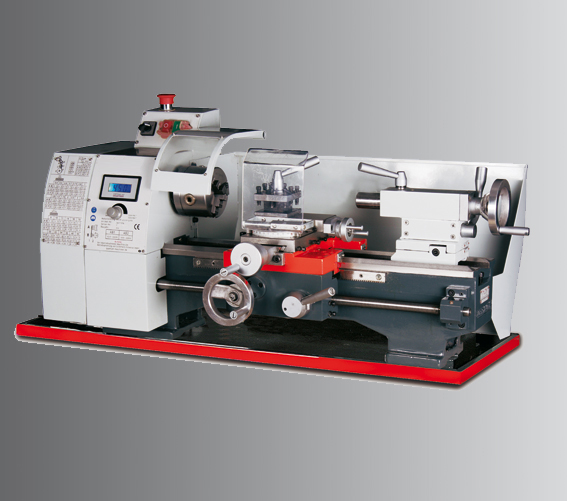

ZN-210型 小型车床
| 型号 | Model | ZN210x400 | ZN210x400 Vario |
| 产品编号 | Code No. | PX4121002(230V) | PX4421000 |
| 产品编号 | Code No. | 4121003(400V) | |
| 加工范围 | Capacity | ||
| 床身上*大回转直径 | Swing over bed | ø210mm | ø210mm |
| 拖板上*大回转直径 | Swing over cross slide | ø110mm | ø110mm |
| 两顶尖中心距 | Admits between | 330mm | 330mm |
| 主轴中心高 | Center height | 105mm | 105mm |
| 床身宽度 | Width of bed | 135mm | 135mm |
| 主轴 | HEADSTOCK | ||
| 主轴通孔直径 | Spindle bore | ø21mm | ø21mm |
| 主轴内孔锥度 | Taper of spindle bore | MT3 | MT3 |
| 主轴转速范围 | Range of spindle speed | 125-2000rpm | 150-2200rpm |
| 进给及螺纹 | FEEDS AND THREADS | ||
| 小拖板*大行程 | Top slide travel | 75mm | 75mm |
| 中拖板*大行程 | Cross slide travel | 110mm | 110mm |
| 车刀刀杆*大截面 | Max.Section of tool | 12x12mm | 12x12mm |
| 公制螺纹范围 | Threads metric pitches | 0.4-3.5mm | 0.4-3.5mm |
| 英制螺纹范围 | Threads imperial pitches | 8-44TPI | 8-44TPI |
| 尾座 | QUILL | ||
| 尾座套筒直径 | Quill diameter | ø30mm | ø30mm |
| 尾座套筒行程 | Quill travel | 70mm | 70mm |
| 尾座套筒内孔锥度 | Quill taper | MT2 | MT2 |
| 横向调整 | Cross adjustment | ±5mm | ±5mm |
| 电机 | MOTOR | ||
| 主电机功率 | Main motor power | 750W | 750W |
| 外形尺寸及重量 | DIMENSION AND WEIGHT | ||
| 外形尺寸（长x宽x高） | Overall dimension(LxWxH) | 880x500x480mm | 880x500x480mm |
| 包装箱尺寸（长x宽x高） | Packing size(LxWxH) | 980x560x560mm | 980x560x560mm |
| 净重/毛重 | Net weight/Gross weight | 114/130kg | 114/130kg |
